Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: JIAXINGYUAN
  • Model Number: shutter
  • Open Style: Rolling
  • Position: Commercial
  • Surface Finishing: Finished
  • Type: Storm Doors
  • Door Material: Aluminum Alloy
  • Color: White, gray, cream,Many colors for choose
  • Surface Treating: Powder Coating
  • Open way: Electrical, manual, remote control
  • Thickness: 0.4mm
  • Function: Storm and Hurricane protection,Anti-theft
  • Motor: can be used 15 years
  • Guide rail's thickness: 2.0mm
  • Type of box: 165 185 205 250mm
  • Material of the Box: 1.0mm aluminum alloy

Packaging & Delivery

Packaging Details Paper inside and wooden outside
Delivery Time 7 days

1.Roller shutter structure





(1) End Cap   (2) Bearing Bracket   (3) Ball Bearing  (4) Steel Cap  (5) Security Plate(optional)

(6) Box(up)    (7) Euroblock   (8) Oct tube   (09) Tubular Motor  (10) Side Rail  (11) Entry Guide

(12) Slat cap   (13) Bottom Beam   (14)Plastic Stopper  (15)Shutter Slat  (16) Box(down)

(17)Motor Controller



2.Material:Color steel

3.Performance data:



Name

Material Thickness

Weight

Maximum width

Maximum height

Surface

Treating

Foaming Material Roller Shutters

0.27——0.526mm

3.5——13kg/sq.m

2.5——8m

3——8m

Powder Coating





4.Color:    White, Cream.(Other colors can be made upon customer's request.)



5.Measurement way for the opening size of door



Take measurement from both ends and center.



For “inside the frame” reduce 1.00 cm from smallest size both in width and height.



For “outside the frame” take the maxinum size in both width and height.



Confirm the install position of the shutter and let us know.





6.Three Installations ways for option







7.Used for :Garden,Garage,Industrial,Comercial



8.Function:Strom and Hurricane protection,Anti-theft



9.Open way:Electrical ,Manual Remote control



10.Motor20years working life. passed Rosh, CE, TUV, CCC. 3years guarantee.



11.Control System: remote control, switch, hand crank

12.Benefit for roller shutter:



Security:The roller shutter can offer the first line of defence in this situation and has the major advantage of being a visual deterrent.

The roller shutters unique operation and locking device also offer a physical barrier against forced intrusion.



Thermal Insulation: The slat is rolled to form a hollow casing into which a PU foam is injected, creating an 8.7mm or18mm thick wall of

insulation, similar in style to a cool room. There is that added insulating qualities of the air gap between the shutter and the window.

These functions could provide up to *90% reduction in thermal transfer through the covered window.



Noise Insulation: The insulating qualities of the roller shutter have the additional function of dampening the intrusion of unwanted noise by

 up to *50%.By creating a barrier in front of the window, the noise flow, which is transferred by vibrations through the air is reduced.



Light Control: Dependant on the type of installation and building construction, a roller shutter can offer up to *100% control of the effects of

harmful ultra  violet and infrared rays. The shutter has the added function of perforations along the slat hinge that can be adjusted to diffuse

the suns rays, while  allowing light into the room.



Storm Protection:The roller shutter will offer a physical barrier against driving rain, high winds and flying debris. Roller shutters are especially

 effective  against hail, protecting the glass from breaking and possible personal injury.



Fire Protection:  The heat from a bush fire can easily shatter the glass in a window and allow the entry of radiant heat and ashes to the home.

 In this case, the roller shutter will offer an effective barrier against radiating heat and airborne ashes.



*Formal Test Results:          Unfortunately, due to the endless variations in building types and installation technics, it is not possible to offer

any official test results on the above mentioned issues. Tests on thermal insulation, noise insulation, wind ratings and fire

protection are all carried out in laboratory situations, and it is impossible to simulate the broad range of applications for roller shutters.

Therefore the details listed should be used as a guide only and cannot be quoted accurately as actual results.



FAQ

13.FAQ

  • Why should I choose roller shutters?
  • Roller shutters offer many benefits that greatly increase the value and comfort of your home:
  • Optimum protection against sunlight
  • Intruder protection and noise-proofing properties
  • Protect your windows against all weather conditions
  • Best-quality materials for long service life
  • Partial darkening (thanks to the slots) or full darkening to help you sleep at night
  • How secure are roller shutters?
  • Even with tools, Modern's roller shutters are extremely difficult, if not impossible to lever open,
  • ensuring your home, family and belongings are well-protected from would-be intruders.
  • Can you paint my shutter in a specific color
  • Usually we can. Each security shutter comes with a standard factory finish.
  • For example, steel roller shutters are galvanised as standard. Aluminium continental roller shutters
  • usually come in a white or cream finish; other aluminium shutters come mill finish.
  • Most (but not all) types can be powder coated or painted to a standard RAL color.
  • Do they age? I've seen old shutters in the past.
  • All Modern roller shutters are constructed with double-skinned aluminium and coated in wet bake polyester,
  • which comes with an immaculate fade and scratch resistant finish, so there's no need worry about old shutters
  • making your property look tired.
  • All of Modern's shutters are available in a huge range of colour combinations to ensure they compliment the
  • aesthetics any property.
  • Do Modern Roller Shutters come with a Warranty?
  • All Modern roller shutters are fully-backed by our famous quality guarantee!
  • 3 Years for slat.
  • 3 Year for motor.
  • 3 Year on other parts and labour.
  • Rest easy knowing your roller shutters are backed by Modern, Jiaxingyuanimprovement experts for the last 10 years.

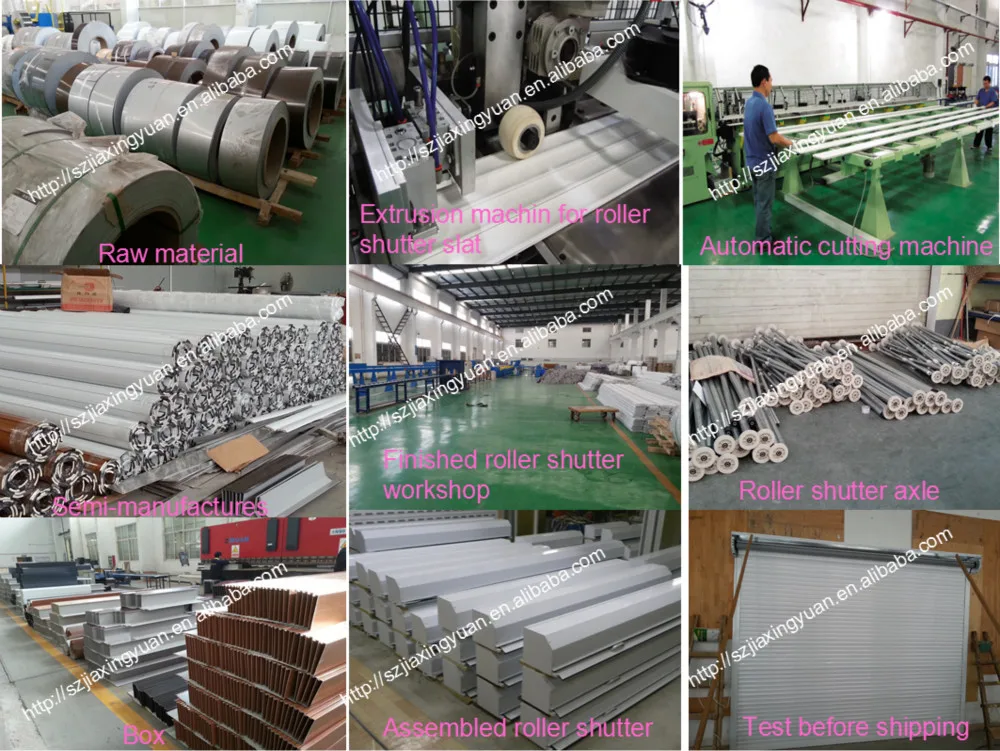

14.Workshop



Packaging & Shipping

 15.Packing details

Paper inside and wooden outside .1 carton/set





 16.Our projects









Our Services

17.Our Service

1 Reply your enquiry in 24 working hours.
2 Experienced staffs answer all your questions in professional and fluent English.
3 Customized design is available.OEM&ODM are welcome.
4 Exclusive and unique solution can be provided to our customer by your our well-trained and professional engineers and staffs.
5 Special discount and protection of sales area provided to your distributor.
6.Do the best Garage Door,Roller shutter door,Awning in china.
